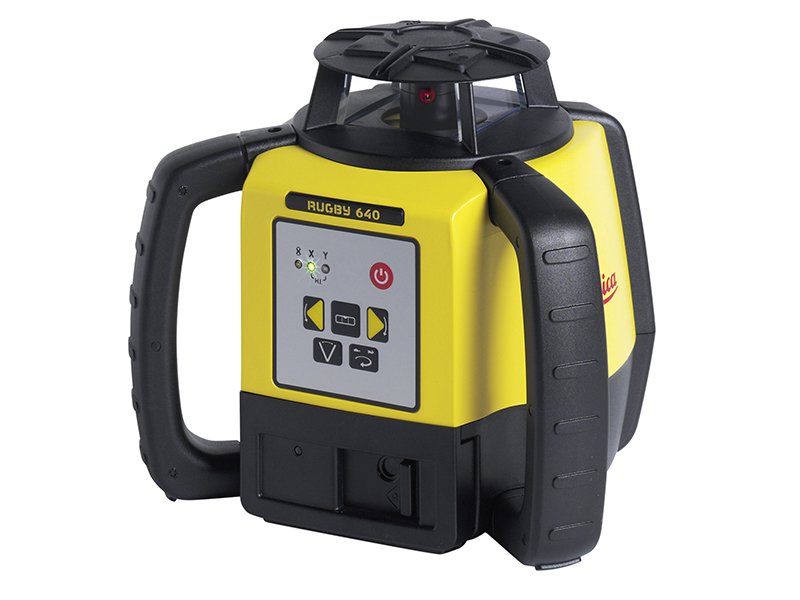

Leica Geosystems Rugby 640 Rotating Gradient Laser Li-Ion

The Leica Rugby Lasers are the toughest rotating lasers suitable for all construction applications. Level more accurately and quicker than ever before, eliminating costly errors and downtime.

The Rugby 640 is a fully automatic multi-purpose laser which operates in both horizontal and vertical planes. Packed with useful features such as:

Scan 90 – make layout easier by quickly moving the beam to the left or right side.
Beam Down – automatic and accurate plumb down, for alignment over a reference point.
Sleep Mode – Save battery and put the Leica Rugby into sleep mode without disturbing your set up.

The unique Smart Slope function continuously monitors time and temperature changes to ensure accurate performance over the course of the day.

Incredibly accurate, the deviation from level should be no more than ± 1.5mm over a 30m distance. Supplied with a Rod Eye Basic laser receiver which extends the laser’s use beyond the visible range and up-to 500m diameter.

All Leica Rugby products are covered by their PROTECT warranty service which provides lifetime manufacturer’s Warranty against defects as a result in manufacturing.

Functions:
Self levelling horizontal laser
Point and speed control functions
Scan 90
Beam Down function
Rotation speeds – 0, 120, 300 and 600/min.

Specification

Accuracy: ±1.5mm @ 30m.
Range: 500m diameter.
Self Levelling Range: ±5°.
Dimensions: 212 x 239 x 192mm.
Protection Class: IP67 Dust/Water Proof.

Box Contents:

Rugby 640 Laser
Rod Eye Basic Receiver
Receiver Bracket
Carry Case
User Manual on CD
Quick Start Guide
PROTECT Warranty Card
Product Inspection Certificate

The Leica Rugby 640 Rotating Grad Laser Li-Ion Unit is powered by a long-lasting Lithium-Ion rechargeable battery pack which is extremely robust and allows more than 40 hours of operation per charge.

A600 Li-ion Battery Pack and A100 Li-ion Charger supplied.
