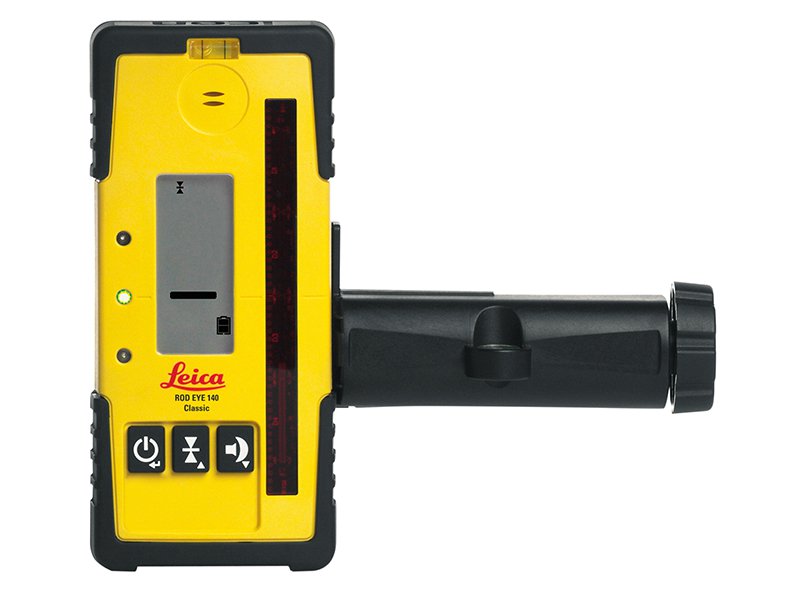

Leica Geosystems Rod Eye 140 Classic Receiver With Bracket

The Leica Rod Eye 140 Classic has two, large graphic displays on the front and back of the receiver. With three bright LED’s it can be used as a ready reference for the receiver position. Menu function allows for additional options to be set, allowing your own personal functional preferences. Fitted with a level vial, ensuring good alignment and improved reading accuracy.

Offers exceptional reception, the extra long reception window includes the unique technology that provides the accurate digital input. With three audio settings, off/low/high, up to 105 decibels for noisy jobs. The versatile rod bracket ensures solid mounting to the grade rod (supplied). The circular level vial aids to keep your grade rod plumb. With a protective overmold that protects the receiver from drops in tough jobsite conditions.

Special Features:

Anti-Strobe Protection: Detects and ignores the flash from strong strobes on the job so that they will not interfere with the receiver function.

Beam Finding: Passing the receiver through the laser beam will cause the receiver to beep twice quickly.

Out of Beam Display: If the detector is moved out of the detector range, the arrow display will indicate the direction to move to return to the laser beam.

Laser Low Battery: A small laser icon on the receiver display alerts the user when the batteries are getting low.

Specification

Working Diameter (Laser Dependent): 1,350m.
Detection Height: 120mm.
Detectable Spectrum: 600-800nm.
Detectable Accuracies: Fine: ± 1.0mm, Medium: ± 2.0mm, Coarse: ± 3.0mm.
Audio Volumes: 105 dBA/65 dBA/Off.
Automatic Shut Off: 10 Minutes.
Arrow Display: 11 Channels.
Protection: 1P67.
Battery Life: +50 Hours.
Dimensions: 173 x 76 x 29mm.
Operating Temperature: -20°C to +50°C.
