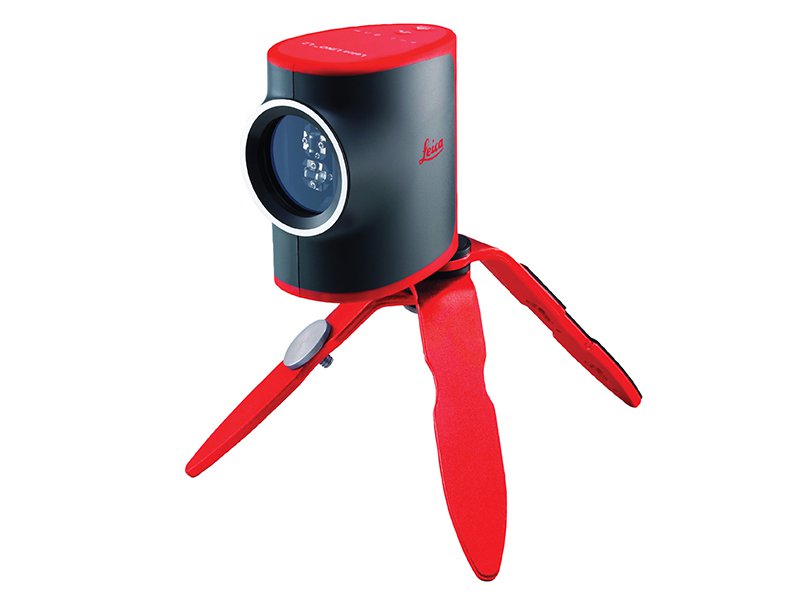

Leica Geosystems Lino L2 Cross Line Laser

The Leica Lino L2 projects clear cross lines exactly, quickly and easily – self levelling to compensate for up-to ±4° allowing you to concentrate on the job in hand. With a simple two button operation you can switch between horizontal, vertical or cross line projection.

Pulsing line mode can be selected to increase the laser range with use of a line detector (Leica Reference LLD2) for long distance or outside operation. This also activates the power saving mode, reducing power consumption by 40%.

The laser unit incorporates a lock function which protects the unit during transport and also allows the unit to project lines at an angle by tilting the unit. You can manually switch off the self-levelling using the lock function, the laser line can then be projected at any angle.

The Leica Lino L2 is supplied with a multi-function adaptor which acts as a mini tripod, magnetic bracket or can be screwed to a wall or frame. Also included is a tripod mount for use on 5/8in site tripods.

Functions:
Horizontal, vertical or cross line modes
Pulse function with power-saving mode
Exact 90° angle

Specifications:
Range: 15m visible range / 30m with receiver.
Accuracy horizontal: ± 1.5mm @ 5m.
Accuracy vertical: ± 0.75mm @ 3m line length.
Protection Class: IP54 Dust and splash protected.
Self-levelling Range: 4° ± 0.5°.
Batteries: 3 x AA 1.5V.
Dimensions (HxDxW): 96 x 91 x 54mm.
Tripod Thread: 1/4in.

Box Contents:
1x Leica Lino L2 Line Laser
1x Target plate
1x Magnetic multifunction adaptor
1x Ball adaptor for tripod
3x Alkaline batteries
1x Carrying Pouch
