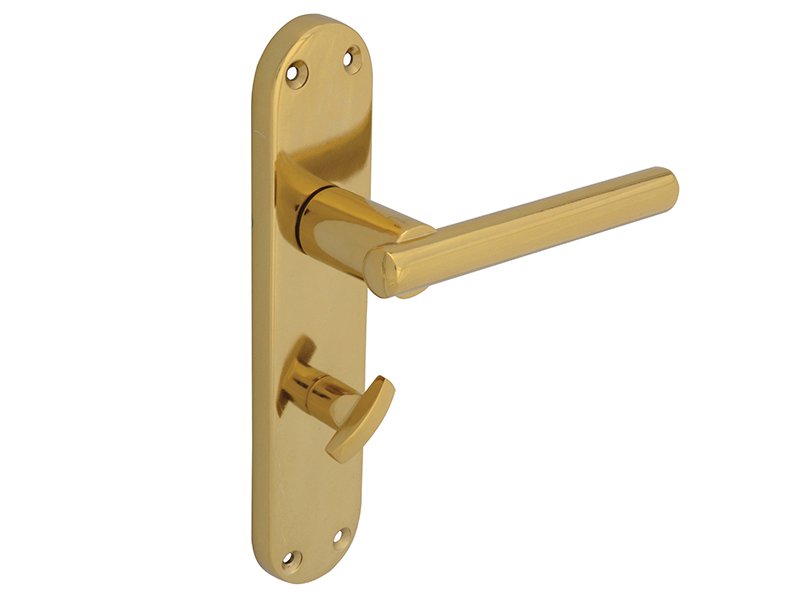

Forge Backplate Handle Bathroom - Modular Brass Finish

The Forge range of Modular Handles incorporates a modern backplate style with a straight bar handle. The sprung handles have a lasting finish and are ideal for internal or external use. They have been tested for corrosion resistance and cycle tested beyond 100,000 uses.

Backplate Size: 184 x 40mm.

Supplied with screws and fitting instructions.

Fitting Instructions:
1. Place the spindle bar through an existing tubular latch or lock and position one handle over the spindle bar. Ensuring the handle is square, mark the screw hole positions with a bradawl.
2. Drill Ø2mm pilot holes and reposition the handle before securing using the wood screws provided.
3. If fitting Bathroom handles, now insert the bathroom spindle bar through the deadbolt hole of the lock from the outside of the door and place the thumbturn onto the spindle bar. Tighten the grubscrew on the underside with the hex key provided.

Designed to be used with a mortice bathroom lock with centres of 57mm. The thumbturn includes emergency access from the shut side with a coin or screwdriver.

Brass finish.
