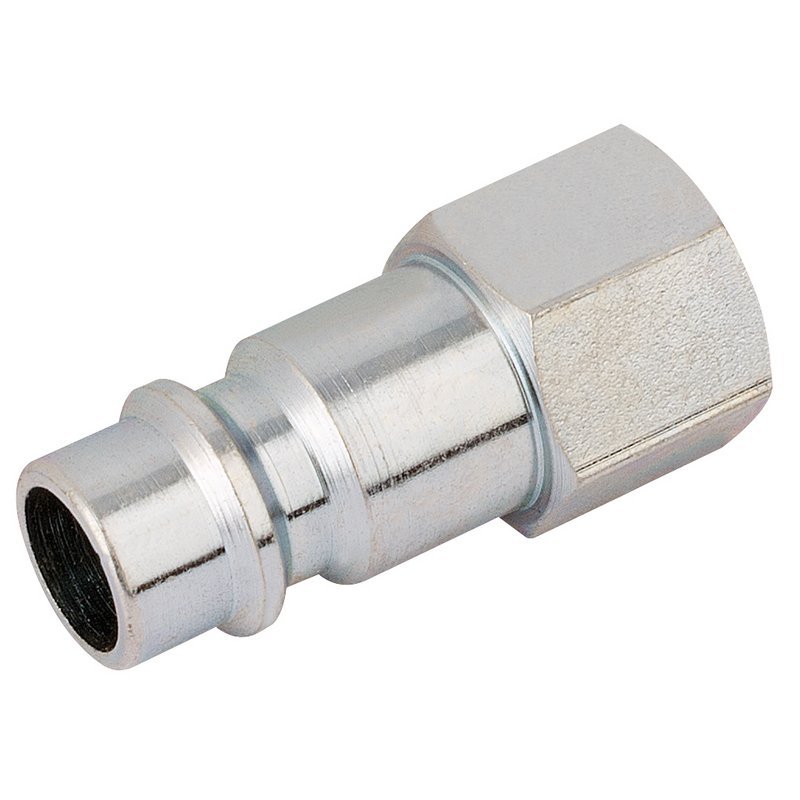

1/8" BSP Female Nut PCL Euro Coupling Adaptor (Sold Loose)
Product Code: 54418
£6.14
INC VAT
ADD TO BASKETOUT OF
STOCK
STOCK
Out of stock not currently available for delivery or click and collect
• For heavy duty high flow applications• Tested to over 1 million cycles• Connects to most popular and European adaptor profiles (Cejn, Rectus etc.)• Zinc passivated to significantly improve corrosion resistance• Hard wearing steel constructionSold loose.
Flow capacity at 6 bar inlet and
0.5bar pressure drop 78cfm (2200L/min)
Max. working pressure 500psi (35bar)
Test pressure 725psi (50bar)
Max. burst pressure 2030psi (140bar)
Temp. range -40 to 100°C
Nominal flow diameter 7.4mm
Flow capacity at 6 bar inlet and
0.5bar pressure drop 78cfm (2200L/min)
Max. working pressure 500psi (35bar)
Test pressure 725psi (50bar)
Max. burst pressure 2030psi (140bar)
Temp. range -40 to 100°C
Nominal flow diameter 7.4mm
